Tight-head HDPE drums

Closed-head barrels for chemicals, solvents, lubricants, and other liquids that need a sealed, stackable, UN-capable package.

Tight-head (non-removable head) drums are the workhorse of North American liquid packaging — the same category you will find at Mauser, Greif, Coexcell, and Core Plastech. We blow-mould them in HDPE with controlled wall distribution so they survive drop, stack, and hydraulic stress.

Two openings with leak-tight plugs and gaskets (typical 2" / NPS configurations)
Stacking rings / L-ring handling options
Natural, blue, black, and custom colors; large print area
Food-grade resin options where the application requires it

Request Spec Sheets & Quote

5 gallon and 15 gallon tight-head drums

UN-rated constructions photographed for the USA catalog. Spec sheets and drawings on request.

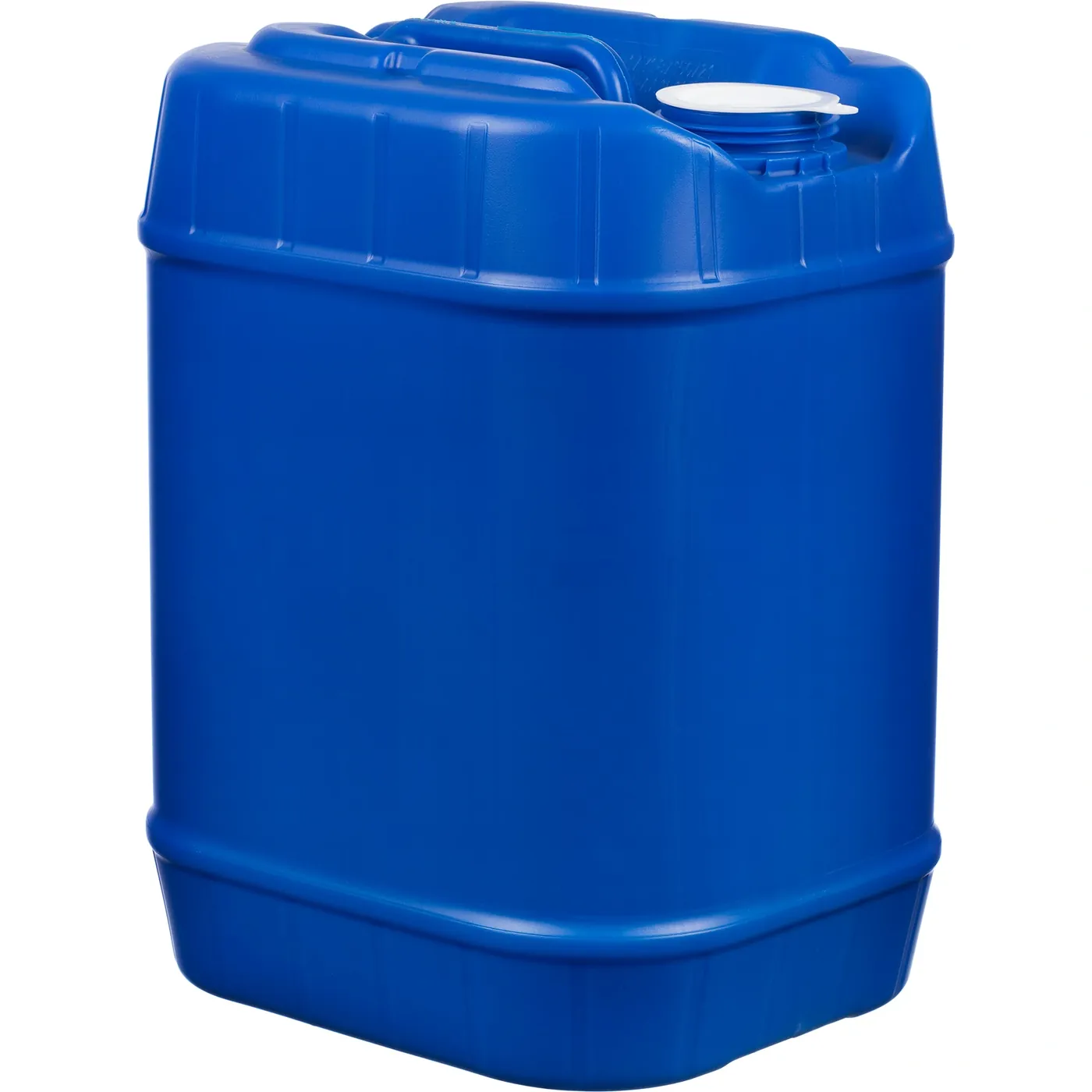

5 gallon blue UN-rated tight-head HDPE container — 5 gallon blue tight-head, 70 mm 6 TPI vent, UN-rated

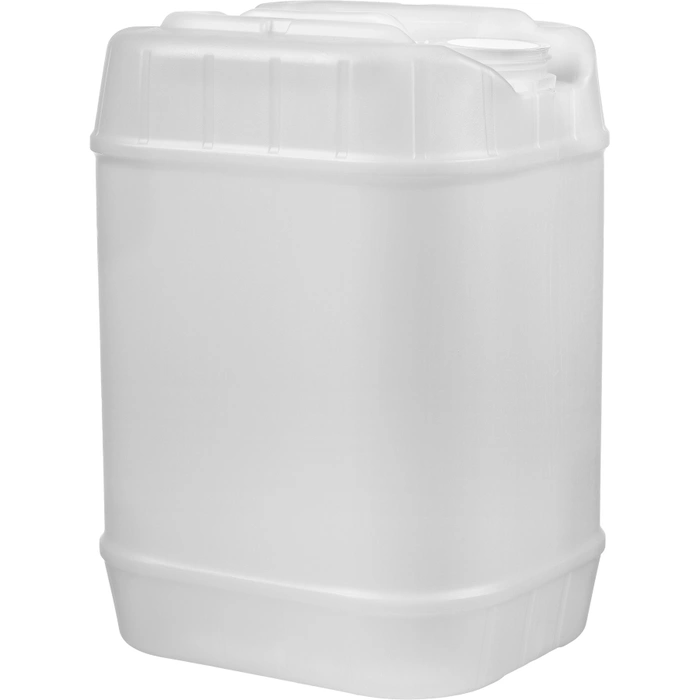

5 gallon natural UN-rated tight-head HDPE container — 5 gallon natural tight-head, 70 mm 6 TPI vent, UN-rated

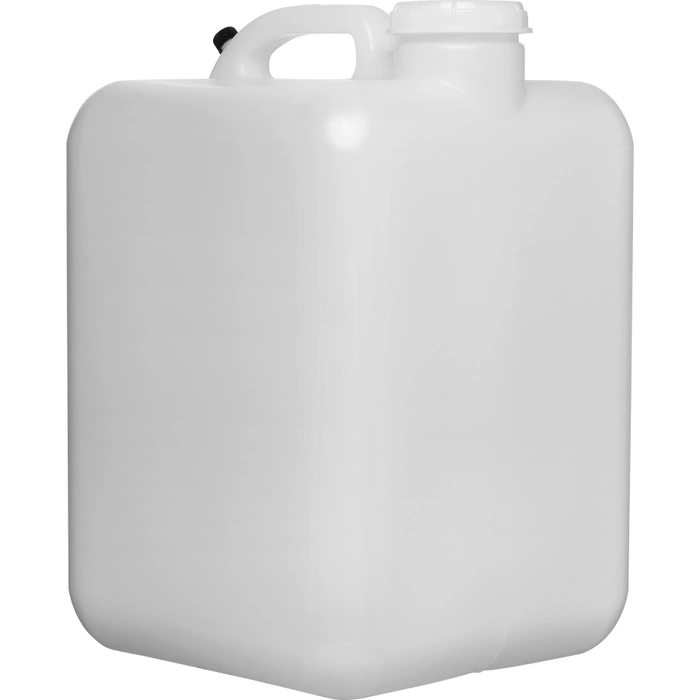

5 gallon natural tight-head HDPE container with cap — 5 gallon natural tight-head with 70 mm 8 TPI cap

5 gallon rectangular stackable tight-head HDPE container — 5 gallon rectangular stackable tight-head, 70 mm neck

5 gallon rectangular tight-head with 2 inch buttress bung

5 gallon round blue tight-head HDPE drum carboy — 5 gallon round tight-head plastic drum / carboy

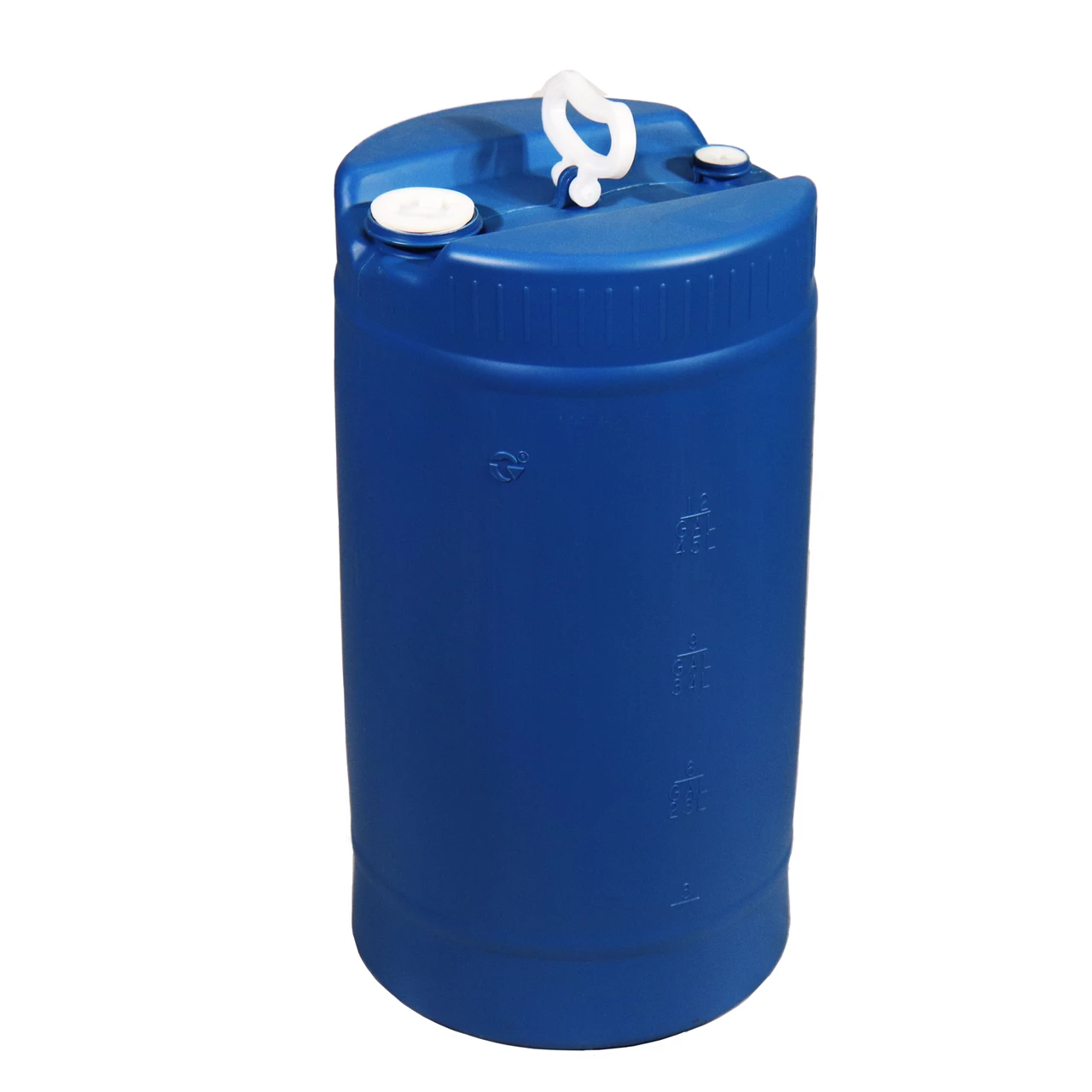

15 gallon blue UN-rated tight-head HDPE drum — 15 gallon blue tight-head drum, UN-rated

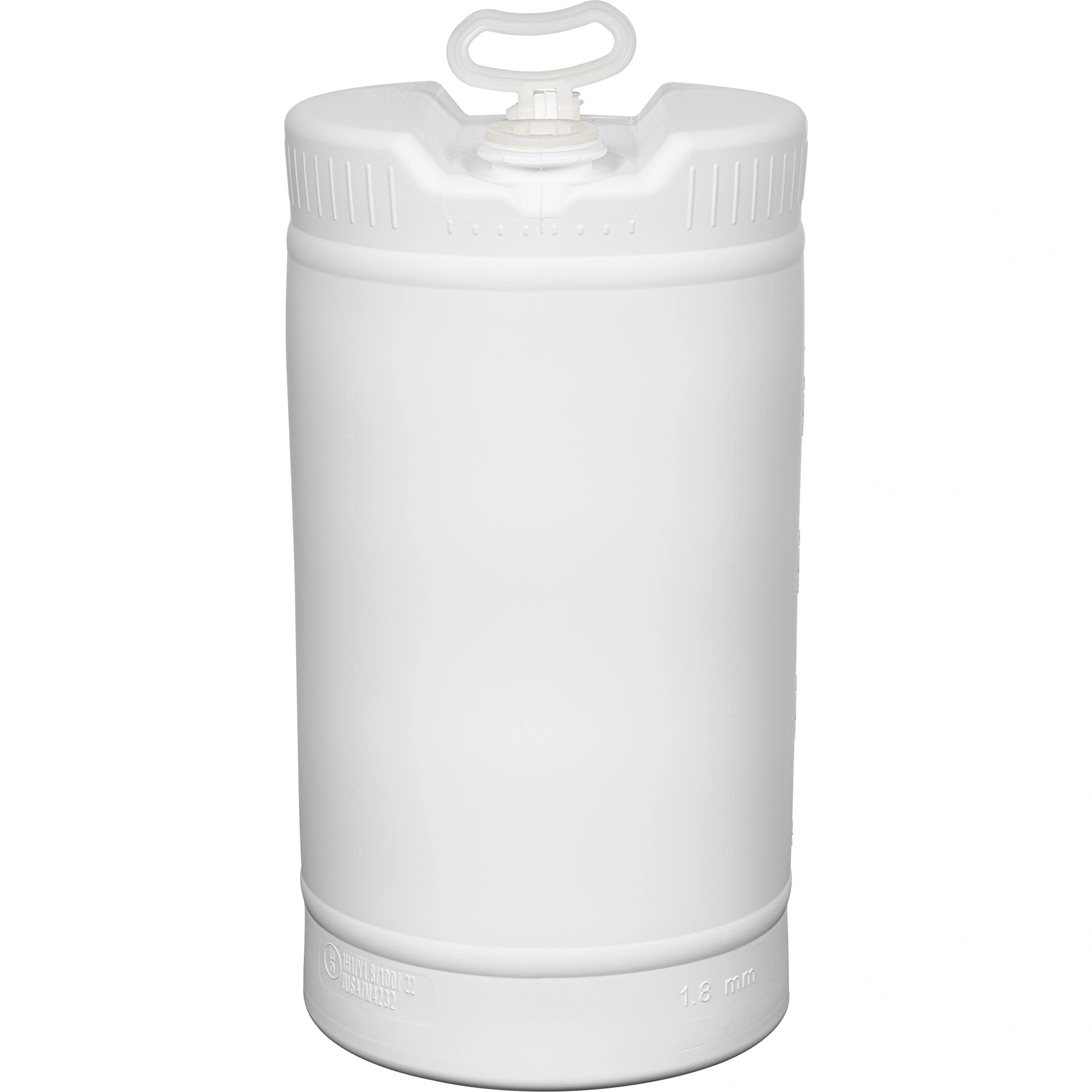

15 gallon white UN-rated tight-head HDPE drum — 15 gallon white tight-head drum, UN-rated

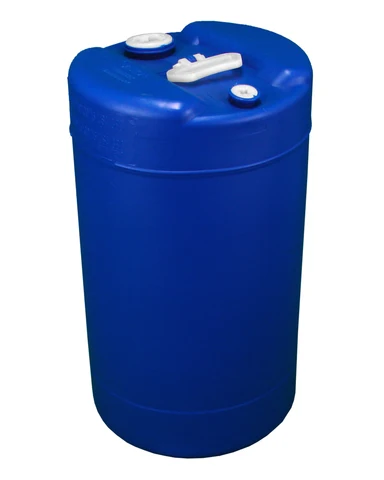

15 gallon UN-rated tight-head HDPE drum — 15 gallon tight-head drum, UN-rated

Typical US sizes

Figures are commercial starting points for quoting. Final weight, UN marking, and dimensions are confirmed against the approved drawing.

Nominal	Approx. liters	Style	Typical use
5 gal	20 L	Tight head	Specialty chemicals, smaller fills, handled carboys
15 gal	57 L	Tight head	Specialty chemicals, smaller fills
20 gal	76 L	Tight head	Lubricants, additives
30 gal	114 L	Tight head	Mid-volume industrial liquids
55 gal	208 L	Tight head / L-ring	Standard US chemical drum
